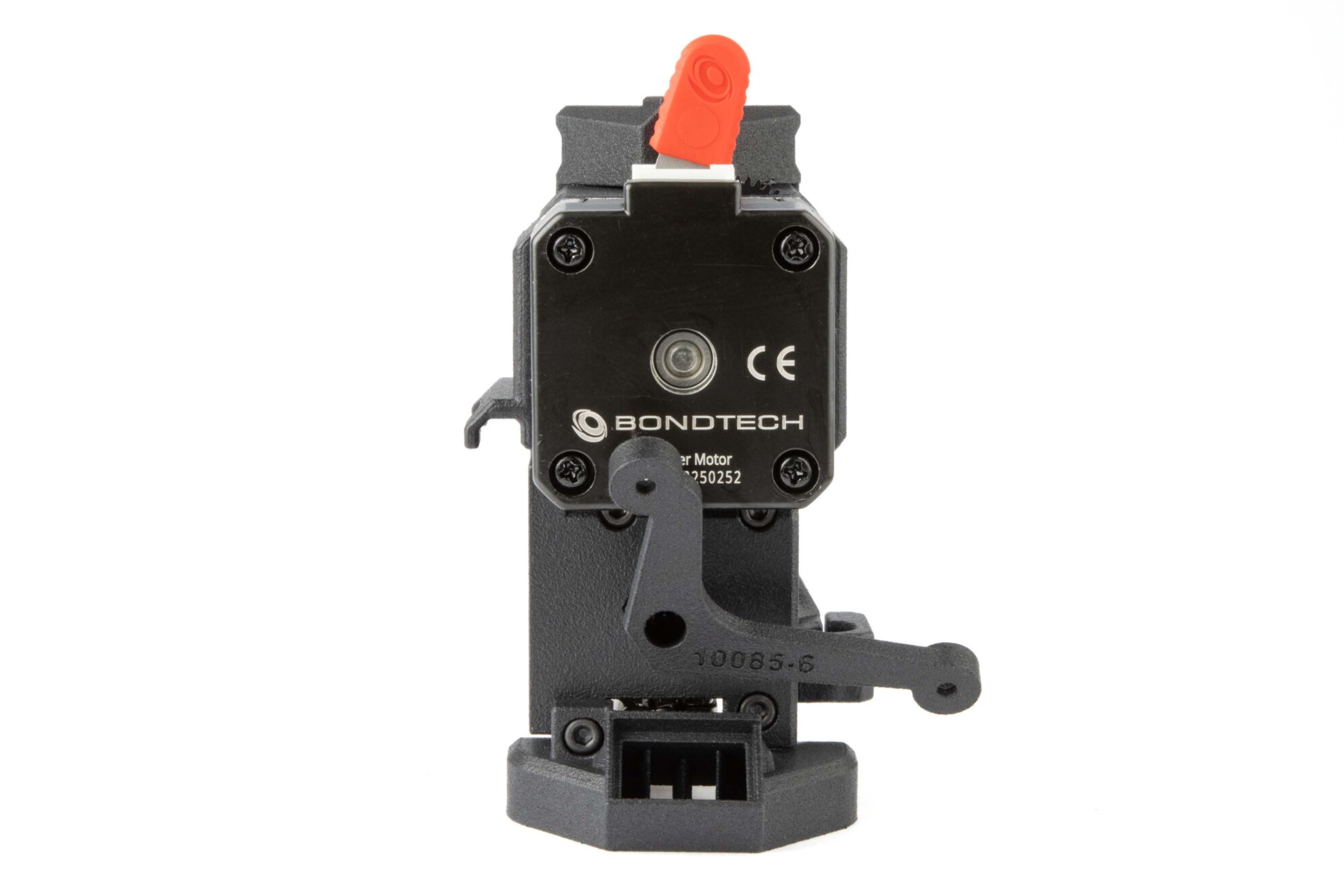

Bondtech LGX™ For Prusa i3 MK3S With Mosquito™ Hotends

Product Includes:

• LGX Large Gears eXtruder
• LGX Accessories for MK3S & Mosquito

Direct Drive Upgrade

This LGX™ based upgrade kit is an easy to install replacement of the stock direct drive extruder. It requires the accessories included in the LGX™ Accessories for MK3S & Mosquito package.

Easy To Install

Very intuitive and easy to install upgrade kit where the extruder faces the X-carriage reducing the distance between the nozzle and the x-axis.

Leading Grip Power

The LGX™ is the Bondtech extruder with the highest filament grip due to its new large drive wheels that put more teeth engaging the filament.

MMU Compatibility

This upgrade kit is not compatible with any MMU version.

Custom Firmware Required

You need to update your Prusa’s firmware to use this product.

New Firmware Available.

Open the Firmware tab to download.

Community Sourced Design

This extruder design is based on Gerd Jentz‘s project posted on GitHub. To check the project and its geometry files click here. To his project we made some small adjustments and added our own filament sensor housing and X-carriage design, compatible with the stock MK3S X-axis.

Enjoy Bondtech’s Evolved Dual Drive Technology

Start using our newest extruder with our new Dual Drive Technology based on larger drive gears. This is only one of the 7 new features Bondtech implemented on an extruder.

7 new features on a Bondtech eXtruder:

• Larger drive wheels, for increased filament grip;
• Filament pre-tension lever, for repeated results;
• Multi-function interface socket, for tool or application quick swap;
• Drive wheels’ maintenance windows, for easy cleaning;
• Compact, light & symmetric design, for increased performance and compatibility;
• Multiple mounting hole patterns, for easy and flexible setup;
• A small step for a greener Future, craft boxes without bleaching & no coating.

You can read more about the new features by clicking here.

3D Printed Housing using PA12

The housing parts are professionally printed with nylon for maximum strength and precision and higher temperature resistance.

Working Temperature Limits

Bear in mind the working temperature limit of this upgrade kit will have the following set of limits:

• Due to the stepper motor > up to 70°C.
• The PA12 parts themselves can withstand up to 100°C.

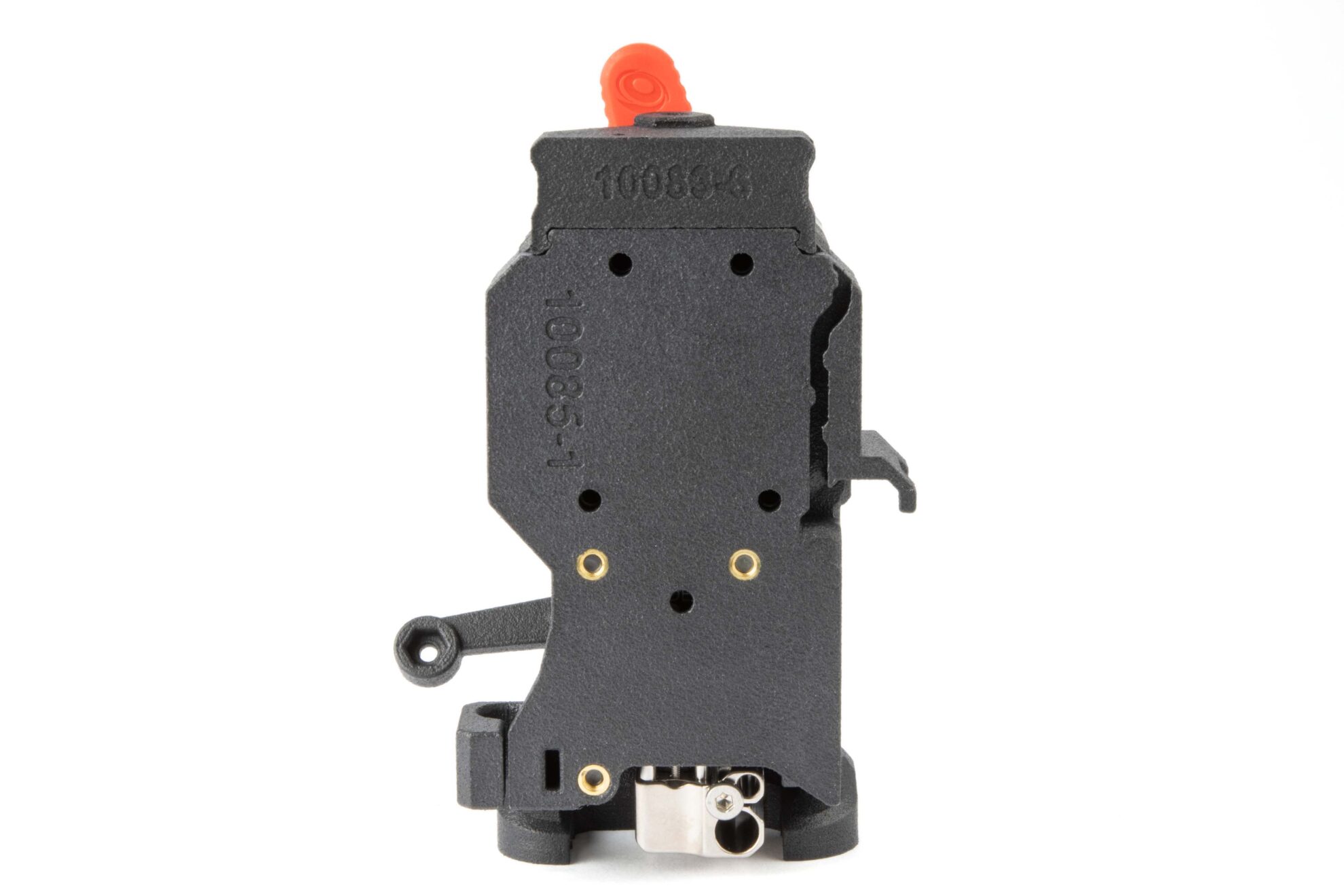

LGX X-carriage for MK3S & Mosquito

Technical Specification

LGX™ extruder

• e-steps value : 400 using 16 microsteps;
• Drive wheels : hardened steel;

• retraction speed : 35 mm/s
• retraction distance (direct drive) for rigid materials : 0.4 mm
• retraction distance (direct drive) for soft materials : 3 mm

• Max operating temperature : 70°C

• Max tightening torque on the extruder screws is 0.3 Nm
• Max tightening torque on the heatsink/cold block screw is 0.6 Nm

• LGX™ DD net weight : 218.6 g
• Package measurements : 80x103x73 mm
• Package weight : 269 g

Custom Stepper Motor for Bondtech LGX™

• Requires cable with PHR-6 connector
• 2 phases
• DC 3.1 V
• Max 0.7A / phase

  To use the LGX®, run the stepper motor with currents between ~0.45 and ~0.65A:

  Be vigilant regarding the stepper motor surface temperature.
  Keep it cool enough to touch. Lower Vref otherwise.

• Class H motor, rated up to 180°C
  • Max recommended environment : 70°C
  • Max temperature at this environment temperature can go up to 130°C on account of the self heating.
• Download the stepper motor Technical Data Sheet here.

How to change the Current using Vref

It is very hard to read the current being fed to stepper motors. To determine that current we rely on the Vref value. The Vref value is a voltage reference measured in VDC that can be read using a multimeter. It helps us setting the current output of the stepper motor driver.

Different 3D printer mainboards use different stepper motor drivers. Each type of stepper motor drivers has its own formula to calculate the required Vref to get a specific current. Here are some examples:

• TMC stepper drivers.
  The formula for these drivers is Vref = ( I * 2.5 ) / Imax
  Where I is the target current value measured in A; and Imax is 1.77 on regular mode and 1.2 on SilentStepSticks mode.

• Pololu A4998.
  The formula for these drivers is Vref = I * 8 * R
  Where I is the target current value measured in A; and R is the Sense Resistor value, that depends on what board are you using. Melzis use 0.1. The Creality Silent boards use 0.15, ...


Video Guides

Click here to learn how to install the Filament Sensor on the new housing

1: Insert 10mm magnet into filament sensor housing.

2: Connect cable to the sensor PCB.

3: Install filament sensor into sensor housing.

4: Slowly loosen screw until lever suddenly snaps to the magnet.

Test function again by pushing filament in and out to check if the lever snaps back.

5: Remove LGX push-fit collet

6: Install sensor into the extruder and insert cable into cable channel.

CREDITS

Soundtracks are based on a Purple Planet Music tune:
Summer in Paradise

Check Purple Planet Music at https://www.purple-planet.com/

Latest Firmware

Based on Prusa v3.14.0

Please read Prusa’s release note to know about all changes : 3.14.0 Firmware

Click the link below to visit the Source Code page to clone or download.

Select the Bondtech MK3 FW3140 branch

For older versions Click here
