Make Your Own LGX Lite Arrow Set
Make it yourself or make it your own
Bondtech is releasing
the meshes and geometry of the Arrow for Creality upgrade set that fits a LGX Lite on the following strain gauge bed levelling models:
- CR-6 SE;
- CR-6 Max;
- CR-10 Smart.
The Bondtech LGX Lite Arrow for Creality provides support to use the LGX Lite as a direct extruder on the mentioned models, and compatibility with multiple hotend options while being lighter than just using the Perch style setup.
The Arrow housing parts, made of plastic are 40g lighter than stock, which provide a relevant compensation for upgrading the extruder from bowden to direct.
The Bondtech LGX Lite Arrow for Creality can be used with the following hotends:
- CR-6 SE/Max
- CR-10 Smart
- Copperhead screw mount
- Mosquito
- Mosquito Magnum
- Mosquito Magnum+

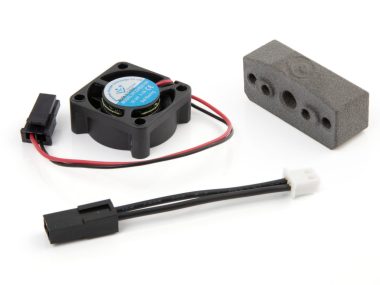

Slice Engineering’s hotends above will require a specific hotend adapter set you can find below.
Check the LGX Lite Arrow for Creality Setup Guide before installation.
Additional Hardware you will need
- 4x M3x6 button head screw
- 2x M3x10 button head screw
- 1x M3x25-30 screw
- 1x M3 square nut
- 1x Capricorn cutting fixture ( STL’s download link on the setup guide )
- 1x Capricorn tube ( length depends on the hotend to use. check the setup guide )
- 4x M3x8 button head screw ( 3 only for the CR-10 Smart )
- 1x M3x16 screw
- 2x M3x20 MC6S screw
- 3x M3 square nut ( 2 only for the CR-10 Smart )

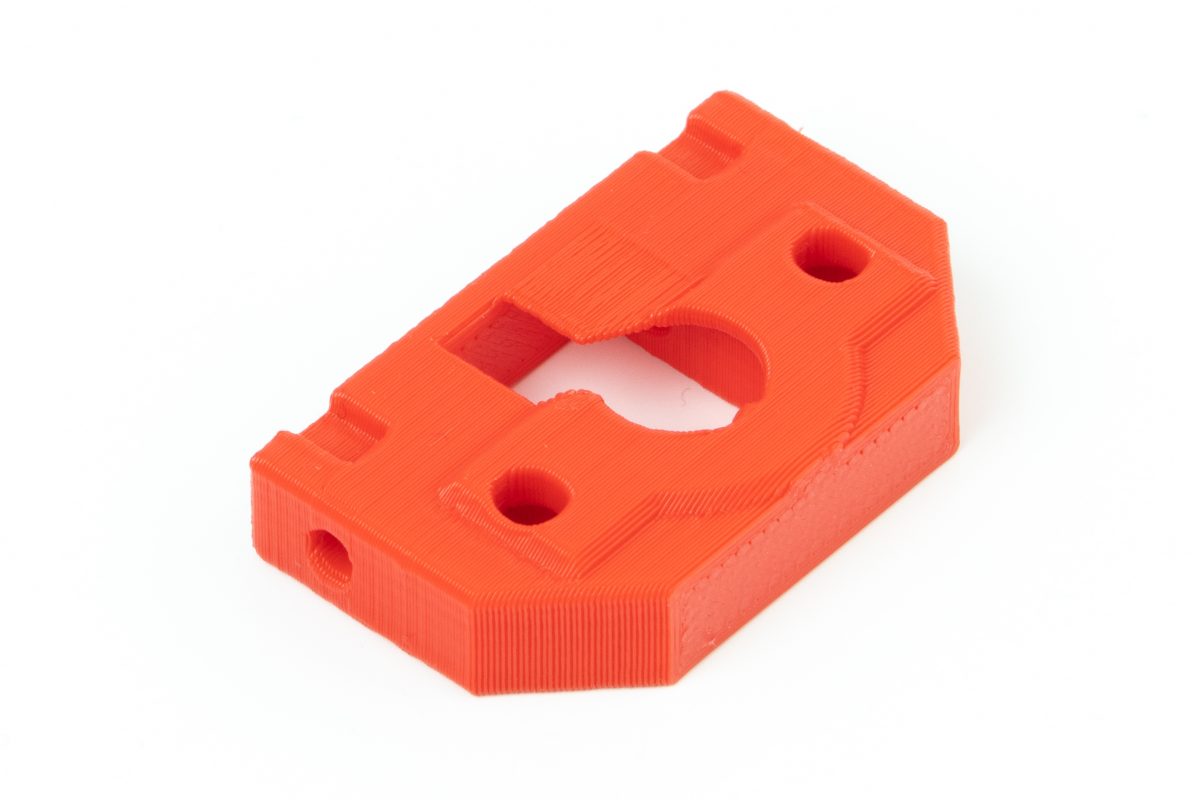

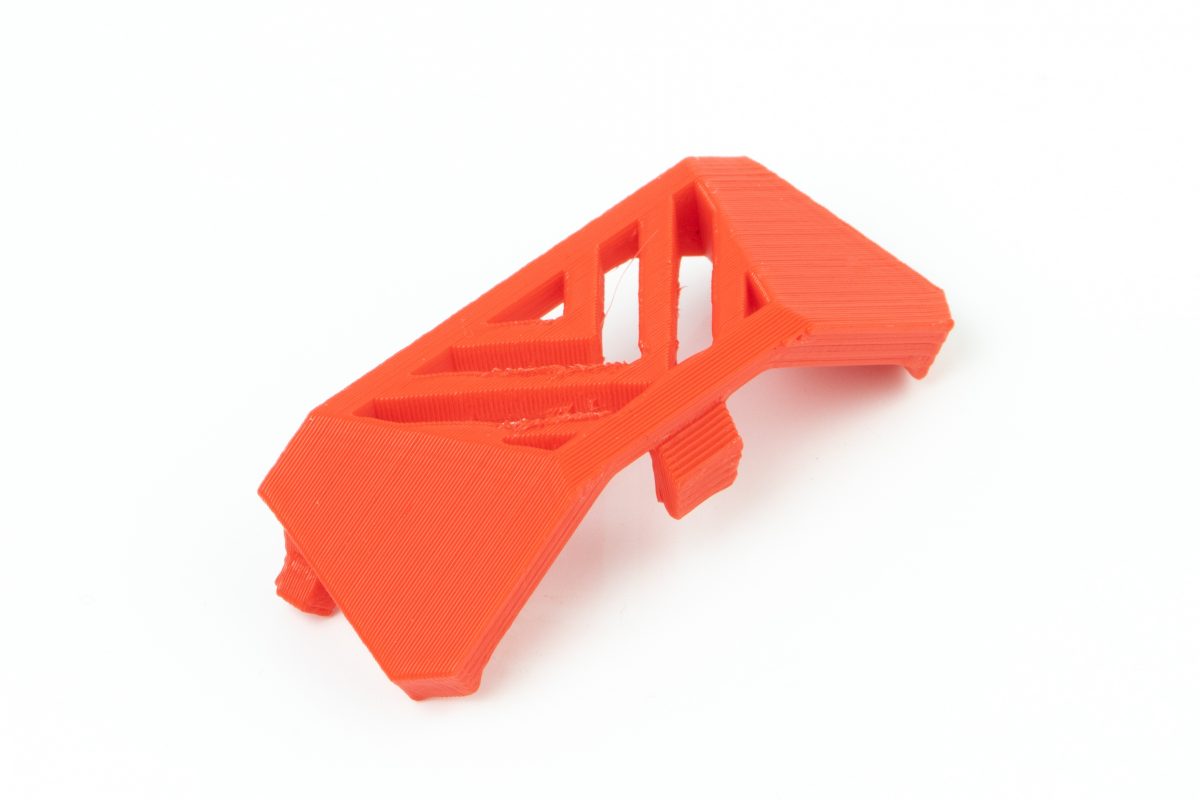

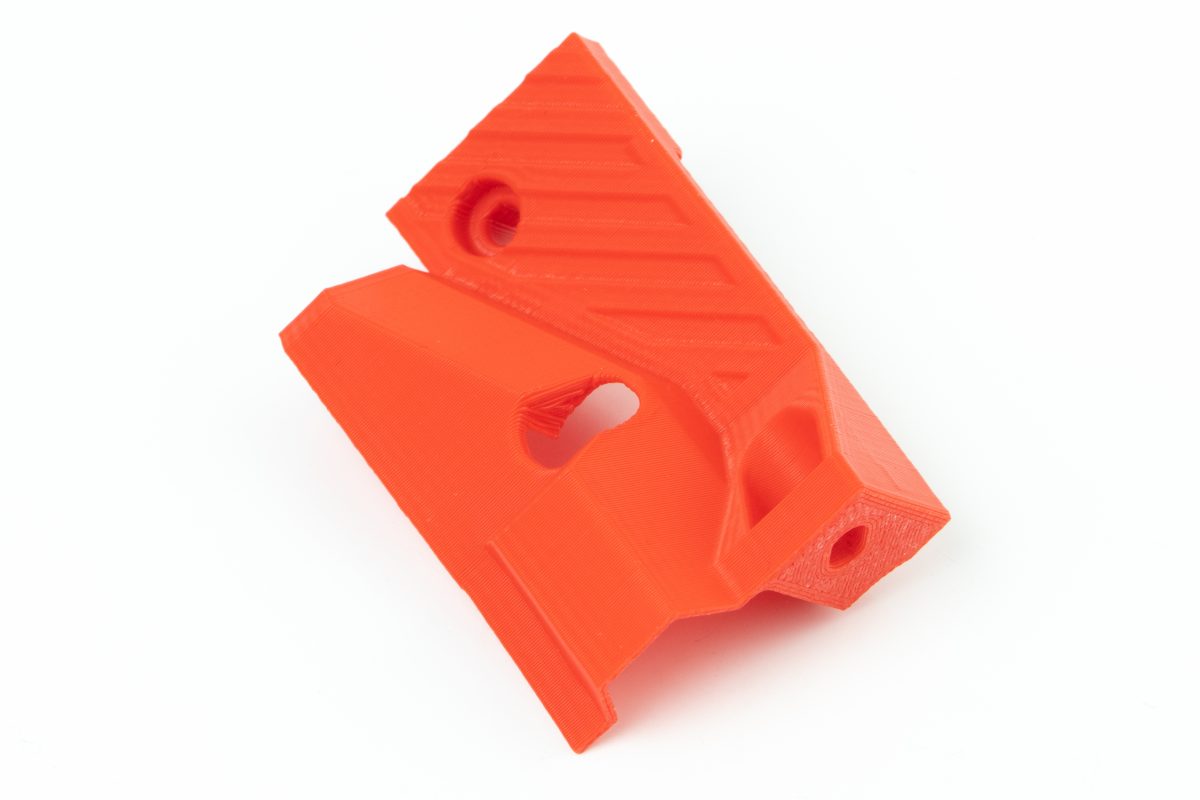

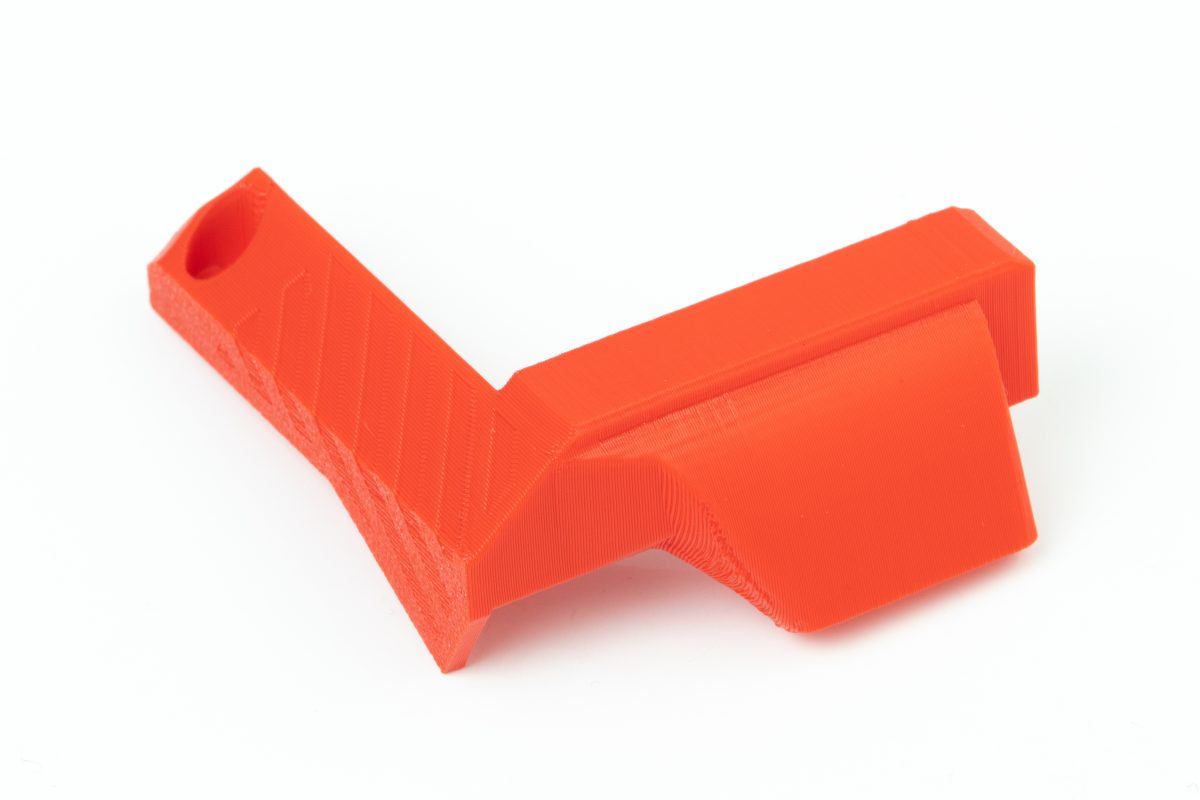

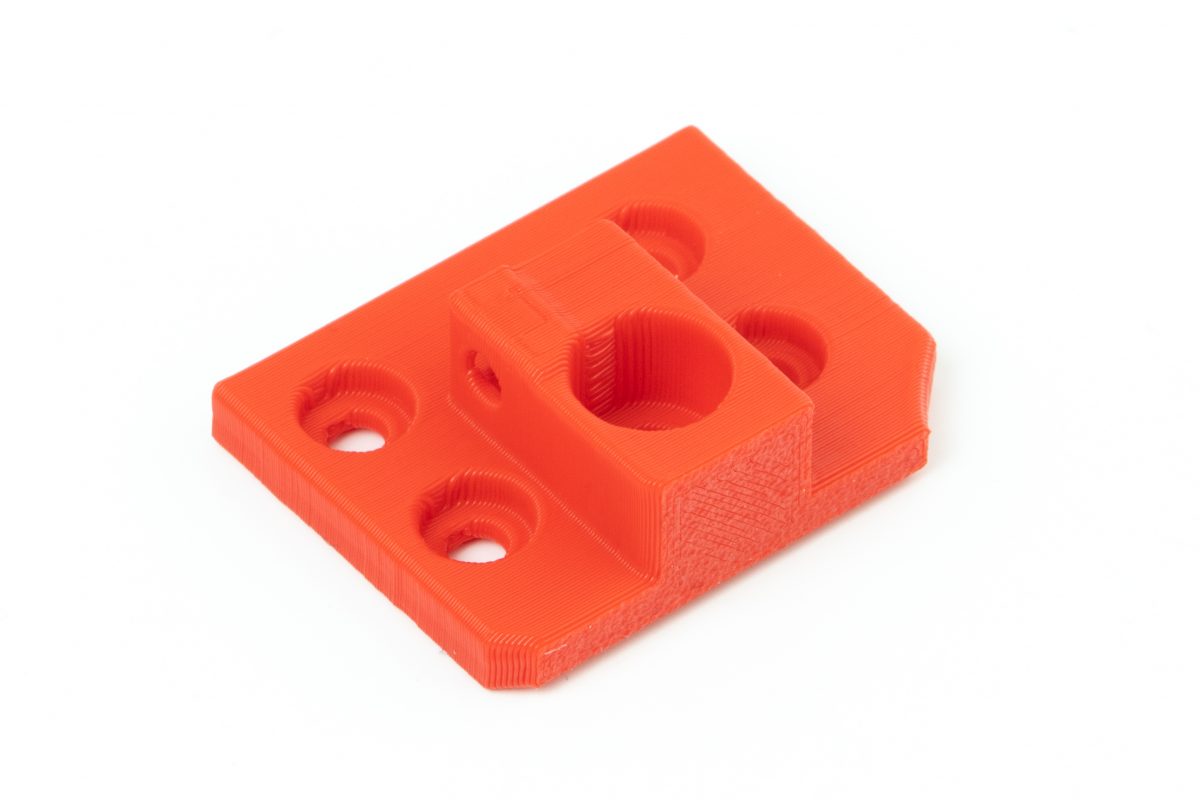

Click each image below to download its corresponding STL file.
Construction detail

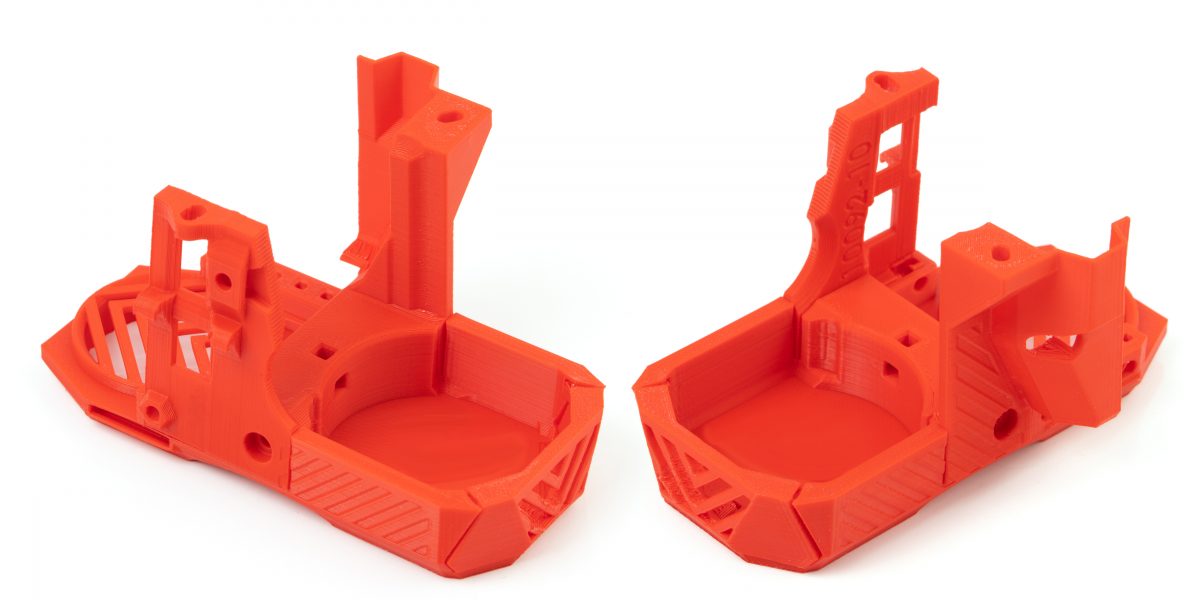

Zoom in the picture to learn how to install the Left and Right wings on the front housing.
Use the MC6S screws and tap them together.
Choose, download and 3D print one of the g-code files we prepared
Download this g-code file to 3D print the parts above with the stock bowden setup using PLA.
Click here to download stock g-codeDownload this g-code file to 3D print the parts above with the LGX Lite on a direct “Perch” setup using PLA.
Click here to download perch g-codePurchase the Bondtech Originals
You can add to cart and order below, multiple original components of the Bondtech LGX Lite Arrow for Creality system, including the Arrow for Creality elements with plastic parts made of PA12 with SLS 3D printing.
You may also download ( and use ) these additional resources
Use this g-code file to print a test file that will help you know if your setup was successful. The g-code file is a 20 minutes print of a Bondtech coin that includes some print features that the final setup should resolve. It can be used on the CR-6 SE, CR-6 Max, and CR-10 Smart.
Roll back and forth to zoom in and out.
Click and drag to rotate the view.
